DIN ROUND NUT/ DIN UNION
Product ID: DIN ROUND NUT / DIN-13R

inquiry

 DIN ROUND NUT (DIN-13R) CAN BE EASILY TO ASSEMBL WIHT DIN LINER, MALE AND GASKETS TO BE A COMPLETE UNION SET.





Description:

SANITARY UNIONS OF DIN UNION TYPE

DIN ROUND NUT OF UNION CAN BE APPLIED TO FOOD, DAIRY, COSMETIC, BEVERAGE INDUSTRIES…ETC

MATERIAL : 304- CASTING AND FORGING

SPEC: DN10~DN125 FOR METRIC AND 1"~4" FOR IMPERIAL

MACHINED SLOTS : DN10~DN50 FOR 4 SLOTS

                                      DN65~DN125 FOR 4 SLOTS OR 6 SLOTS

SURFACE FINISHING: ROUGHNESS RA<1.6


Specification:

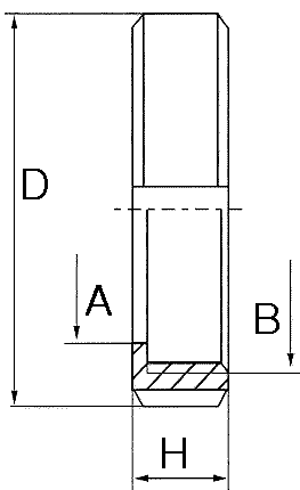

SIZE  A B D H
DN25 36 52*1/6 63 21
DN32 42 58*1/6 70 21
DN40 49 65*1/6 78 21
DN50 62 78*1/6 92 22
DN65 80 95*1/6 112 25
DN80 94 110*1/6 127 29
DN100 115 130*1/6 148 31
