DIN WELD MALE SHORT TYPE (DIN-15S)
Product ID: DIN WELD MALE SHORT TYPE (DIN-15S)

inquiry

SANITARY UNIONS OF DIN UNION TYPE

DIN WELD MALE CAN BE EASILY TO ASSEMBLE WIHT DIN ROUND NUT, LINER AND GASKETS TO BE A COMPLETE UNION SET



Description:



SANITARY UNIONS OF DIN UNION TYPE

DIN WELD MALE OF UNION CAN BE APPLIED TO FOOD, DAIRY, COSMETIC, BEVERAGE INDUSTRIES…ETC

MATERIAL : 304,316, 316L- CASTING AND FORGING

SPEC: DN10~DN125 FOR METRIC AND 1"~4" FOR IMPERIAL

SURFACE FINISHING: ID/OD ROUGHNESS (RA<0.8)

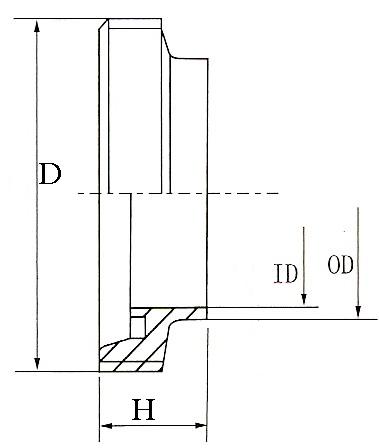

Specification:




SIZE  OD ID D H
DN25 31 26 52*1/6 22
DN32 37 32 58*1/6 22
DN40 43 38 65*1/6 22
DN50 55 50 78*1/6 23
DN65 72 66 95*1/6 25
DN80 87 81 110*1/6 25
DN100 106 100 130*1/6 30
